Key Specifications

• **Frequency:** 7.050 MHz
• **Function:** Bandpass Filter (BPF)
• **Brand:** ZWAAJKQK
• **Item Type:** Adapter
• **Package:** Not included
• **Material:** Other

What is a Shortwave Bandpass Filter?

A shortwave bandpass filter is an electronic component designed to allow a specific range of radio frequencies to pass through while blocking others. This particular filter operates at 7.050 MHz, a common frequency band for amateur radio (ham radio) communications. By selectively passing the desired frequencies, it significantly reduces interference and noise from adjacent bands.

How Does This Filter Improve Signal Quality?

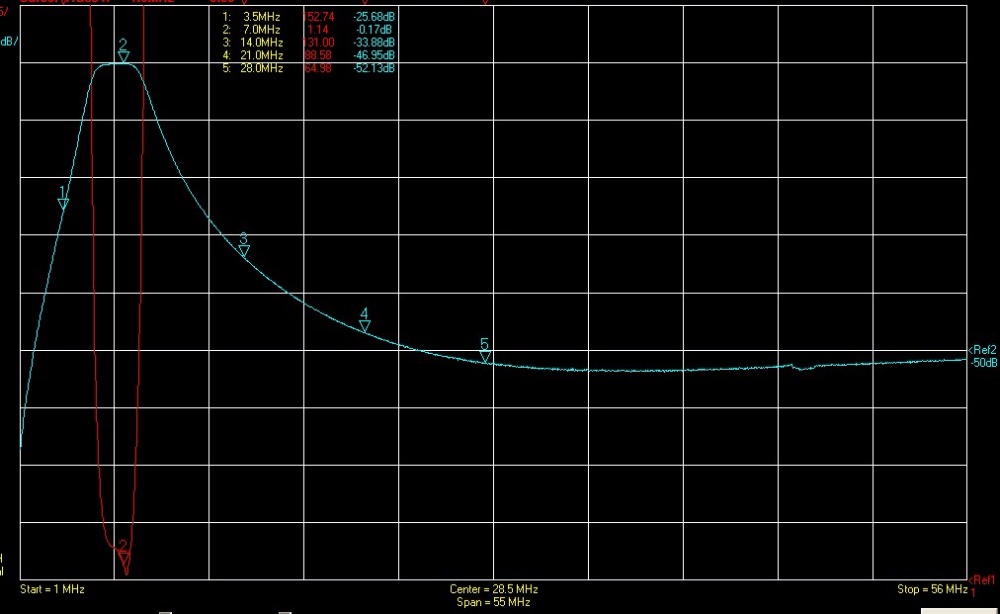

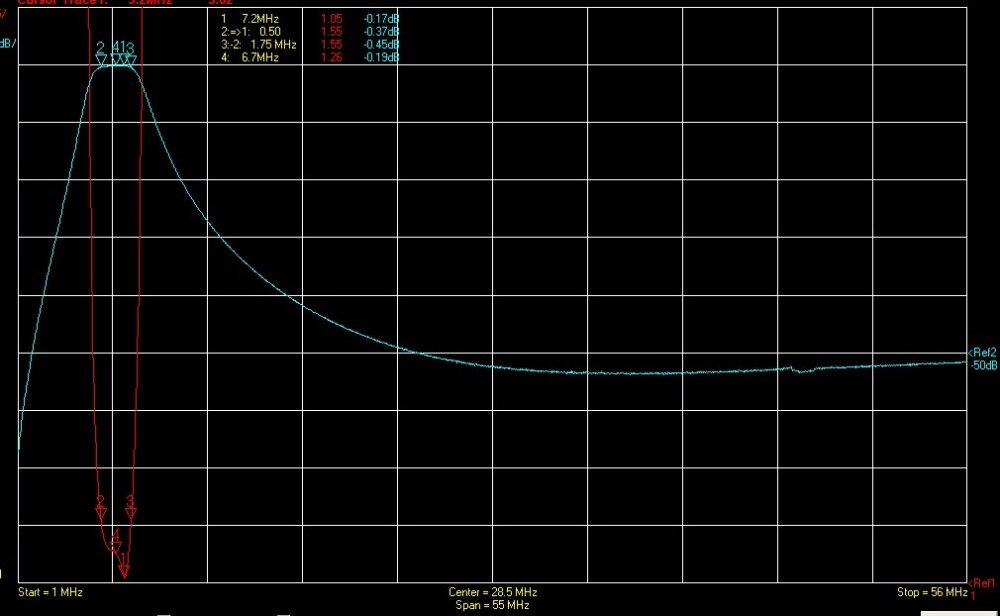

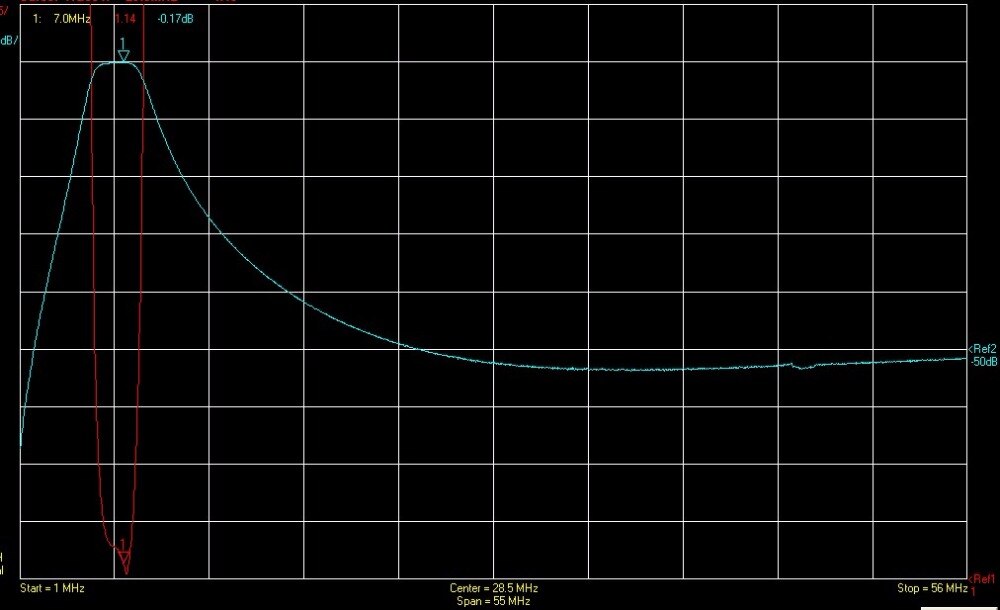

The ZWAAJKQK bandpass filter is engineered to improve the signal-to-noise ratio (SNR) for shortwave signals. In radio reception, a higher SNR means the desired signal is much stronger relative to background noise, leading to clearer and more intelligible audio. This adapter is crucial for radio operators who experience interference from strong out-of-band signals, helping to isolate and amplify the target frequency for better reception and communication.

Technical Details and Usage

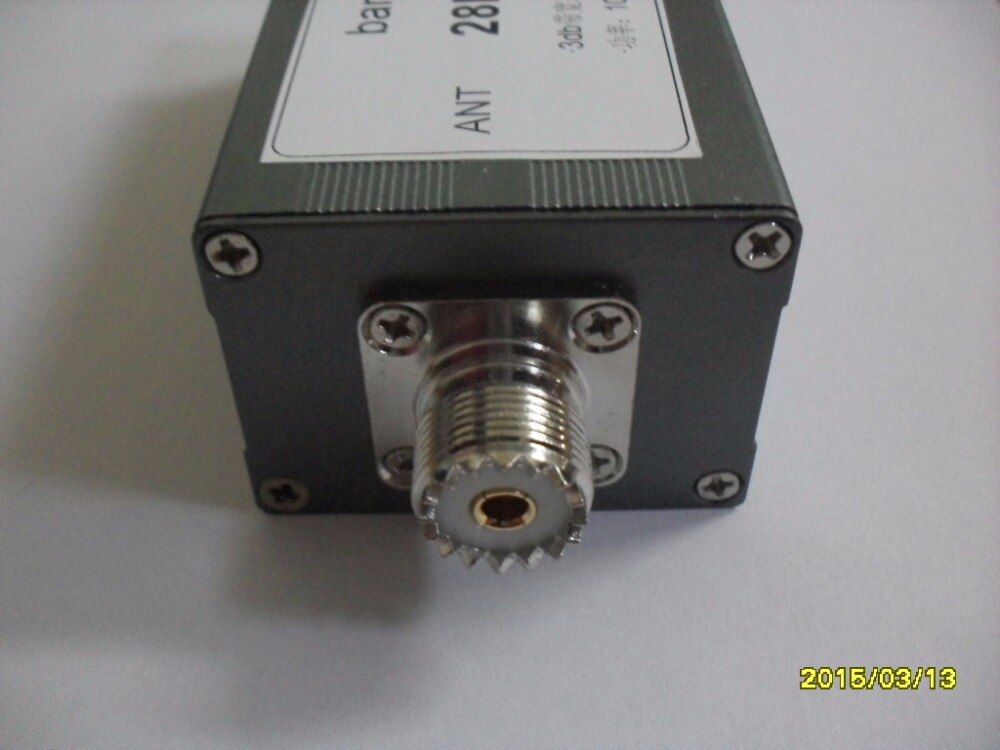

This adapter functions as a passive filter, meaning it does not require external power. Its primary purpose is to enhance the performance of shortwave receivers or transceivers by providing a cleaner signal path. The 'Other' material designation suggests a composite or unspecified material composition, focusing on the filter's electronic performance rather than a specific physical attribute. It is sold as a single unit, not part of a larger package.

Frequently Asked Questions:

What is the operating frequency of this shortwave bandpass filter?

This shortwave bandpass filter operates at a specific frequency of 7.050 MHz. This frequency is commonly used in amateur radio bands.

How does this filter improve shortwave signal quality?

The filter improves the signal-to-noise ratio (SNR) by allowing only the desired 7.050 MHz frequency to pass through, while blocking interference from other frequencies. This results in clearer reception.

Is this bandpass filter powered?

No, this adapter functions as a passive filter. It does not require external power to operate, making it a simple addition to your shortwave setup.

What material is the ZWAAJKQK bandpass filter made of?

The product description lists the material as 'Other'. Specific details regarding the exact composition are not provided, but it is designed for effective signal filtering.
