Boost Your Mobile Signal

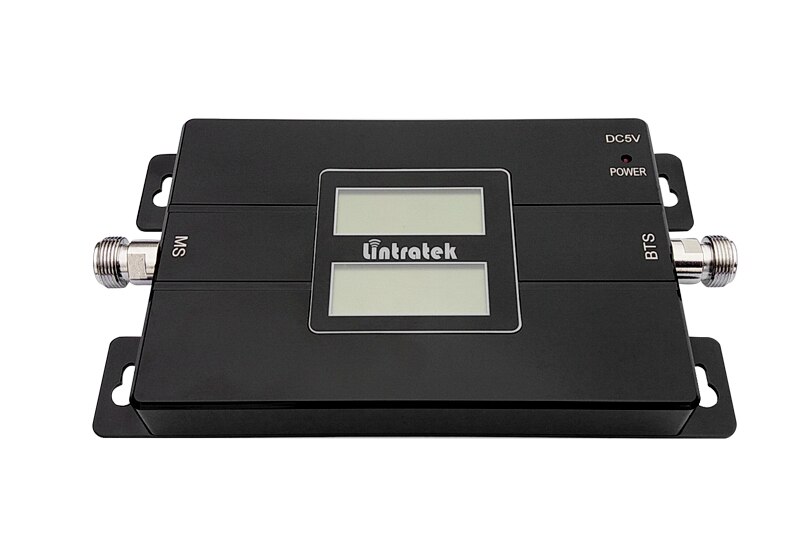

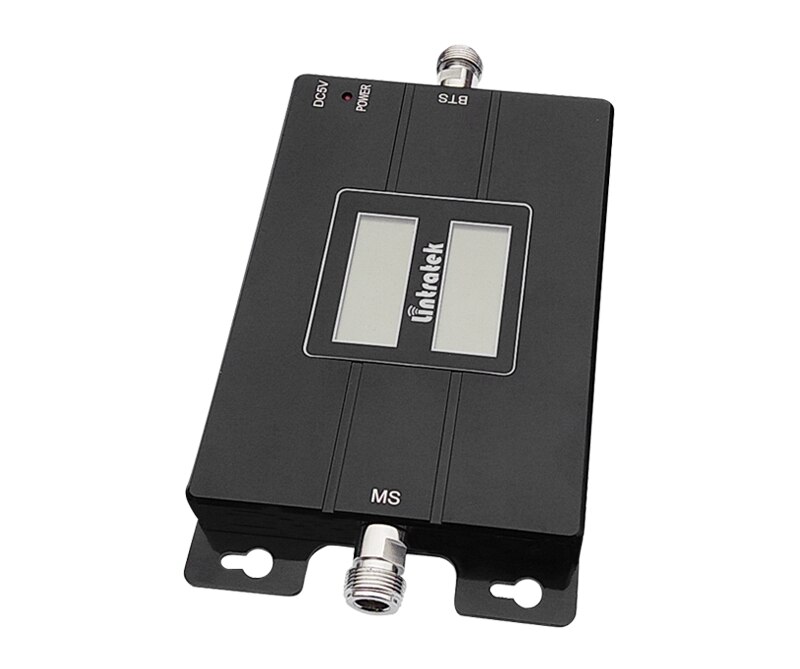

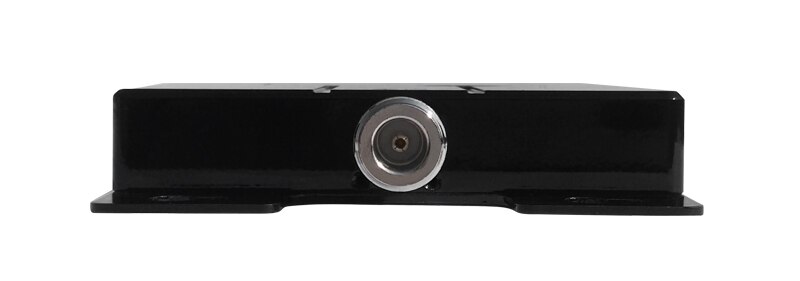

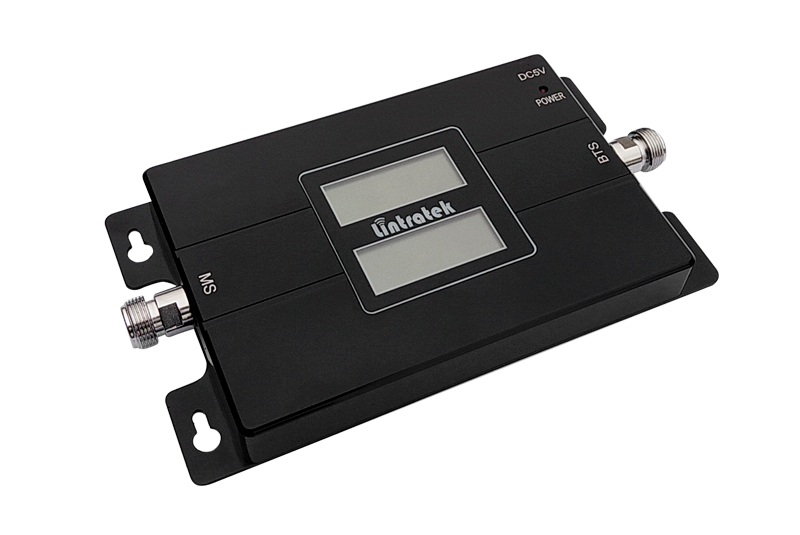

Enhance your cellular reception with the Lintratek GSM Signal Booster. This powerful device is designed to amplify weak GSM signals, ensuring you have a reliable connection for calls and data.

• Dual Band 850/900MHz support for broad compatibility
• High 65dB gain for significant signal improvement
• Two LCD displays provide real-time signal status

How does the Lintratek Booster work?

The Lintratek GSM Signal Booster operates by receiving a weak cellular signal, amplifying it, and then re-broadcasting a stronger signal within its coverage area. This process significantly improves call quality and data speeds for compatible GSM devices.

• Uplink Frequency Range: 824-849MHz / 890-915MHz
• Downlink Frequency Range: 869-894MHz / 935-960MHz
• Output Power: 17dBm

Key Features and Specifications

Designed for ease of use and effective performance, the Lintratek booster comes with all necessary components for setup. Its compact dimensions make it suitable for various indoor environments.

• Model Number: KW17L-CG
• Brand: lintratek
• Dimensions: 195*180*20mm
• Power Supply: AC 110-240V, 50/60Hz; DC 5V/2A

Frequently Asked Questions:

What frequency bands does this GSM signal booster support?

This Lintratek signal booster supports dual-band frequencies for GSM networks, specifically 850MHz and 900MHz. It covers both uplink and downlink ranges for these bands.

What is the gain and output power of this GSM repeater?

The GSM repeater offers a significant gain of 65dB, which is crucial for amplifying weak signals. Its output power is rated at 17dBm, ensuring a strong re-broadcasted signal.

What are the dimensions of the Lintratek GSM booster?

The Lintratek GSM booster has compact dimensions of 195mm in length, 180mm in width, and 20mm in height (D*W*H). This allows for easy placement in various indoor environments.

What power supply is included with the GSM signal booster?

The booster is powered by an AC input ranging from 110V to 240V at 50/60Hz, with a DC output requirement of 5V/2A. The specific plug type (EU, US, UK, AU) depends on the variant purchased.
