Quick Answer

• High-quality BGA stencil template for direct heating applications.
• Supports GA104 series models, including GA104-400-A1, GA104-300-A1, GA104-200-A1, GA104-770-A1, and GA104-775-A1.
• Available in 80x80mm and 90x90mm sizes for versatile use.
• Essential tool for electronics repair and rework.

What is a BGA Stencil Template?

A BGA stencil template is a precision tool used in the process of soldering Ball Grid Array (BGA) components onto printed circuit boards (PCBs).

This template, specifically from the GA104 series, is designed for direct heating methods, ensuring even heat distribution during the soldering process.

It is crucial for achieving reliable solder joints and preventing component damage during electronics repair and manufacturing.

What are the specifications of this BGA Stencil?

This BGA stencil template is part of the GA104 series and is compatible with various models within this line, including GA104-400-A1.

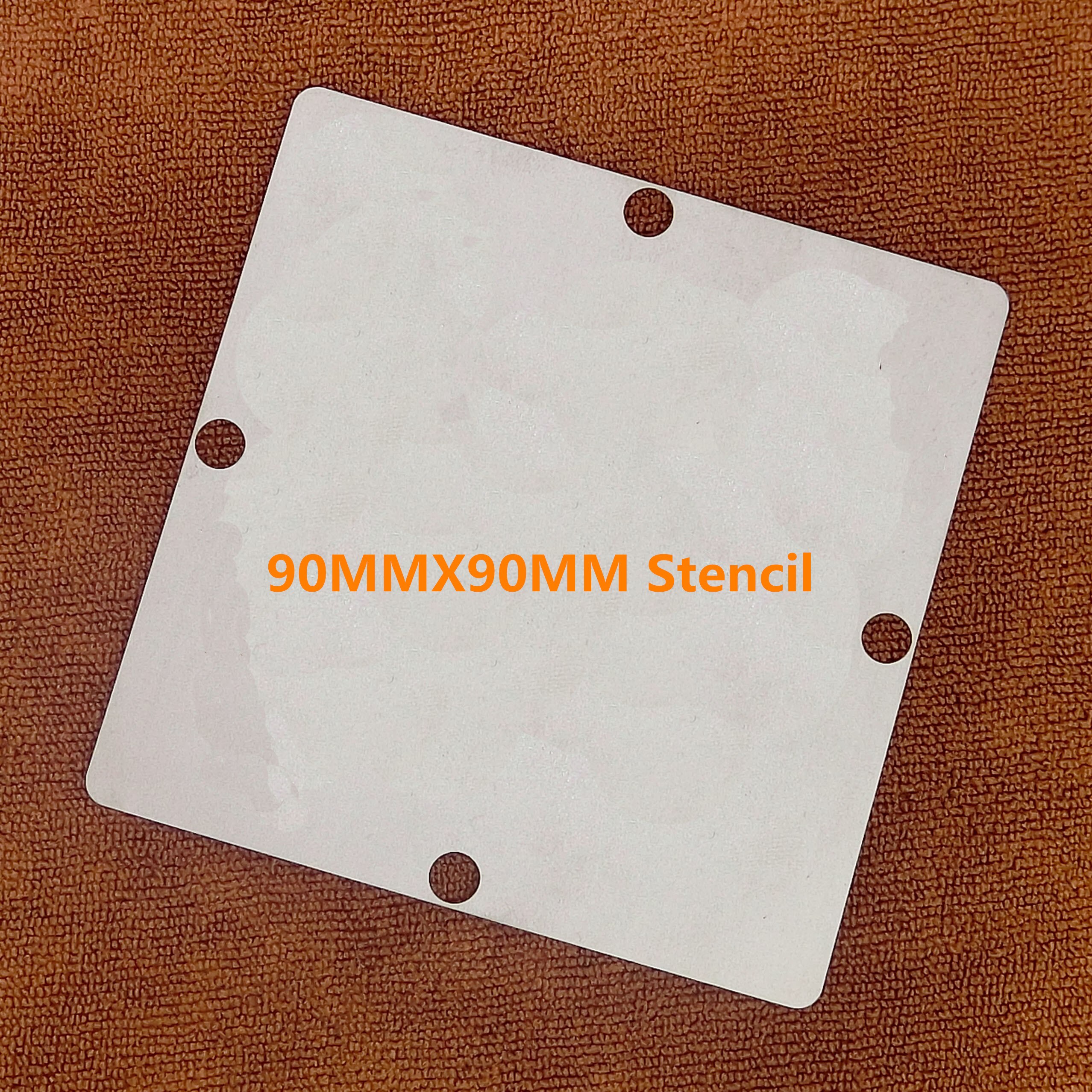

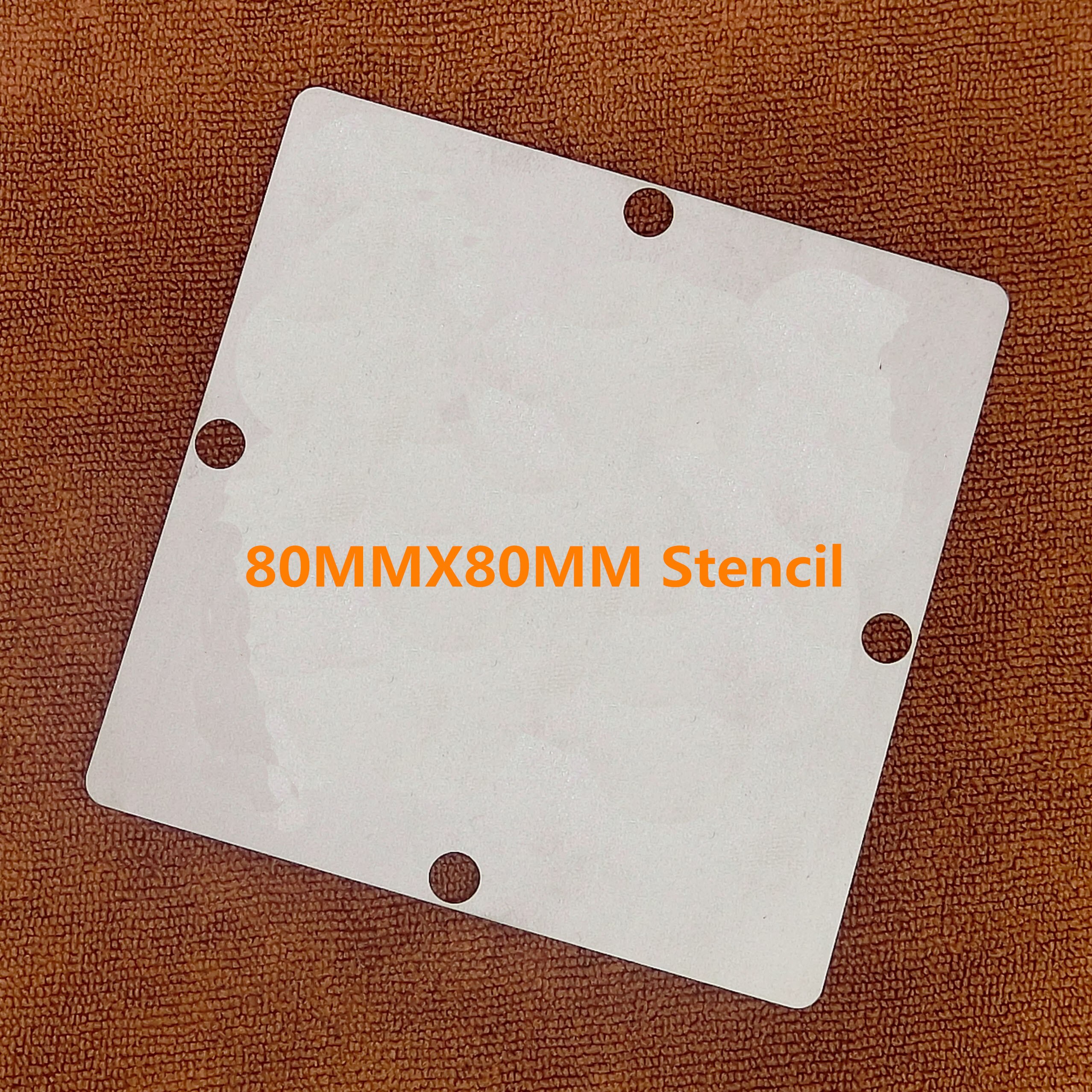

It is available in two common sizes: 80mm x 80mm and 90mm x 90mm, catering to different component and PCB sizes.

The template is manufactured to facilitate direct heating processes, making it suitable for professional electronics rework and repair environments.

Frequently Asked Questions:

What is a BGA stencil template used for?

A BGA stencil template is used to apply solder paste precisely onto the pads of a Ball Grid Array (BGA) component before it is soldered to a printed circuit board (PCB).

Which BGA models does this stencil support?

This stencil template supports various models within the GA104 series, including GA104-400-A1, GA104-300-A1, GA104-200-A1, GA104-770-A1, and GA104-775-A1.

What sizes are available for this BGA stencil?

The BGA stencil template is available in two common sizes: 80mm x 80mm and 90mm x 90mm, suitable for a range of BGA components.

Is this stencil suitable for direct heating?

Yes, this stencil template is specifically designed for direct heating applications, ensuring even heat distribution during the soldering process.
